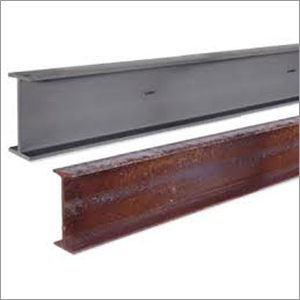

Structural Beams
We are the top most organization immersed in supplying good quality Structural Beams. These are manufactured under the observation of our vendors using high quality materials. The offered beams have diverse application in construction industry. To avoid any kind of defects, these Structural Beams through numerous tests in tune with the defined industry standards.
Beams are capable of withstanding load primarily by resisting against bending. The bending force induced into the material of the beam as a result of the external loads, own weight, span and external reactions to these loads is called a bending moment. Beams are characterized by their profile (shape of cross-section), their length, and their material.
The basic difference between beam and column is, Beam is horizontal structural member - subjected to transverse loading and a column is vertical structural member subjected to vertical loading. Again in beam mainly bending takes place whereas in column compression and buckling takes place.
Features:
Sl.No | Designation | Weight per metre (in kg) |
1 | ISMB 100 X 50 | 8.90 |
2 | ISMB 100 X 70 | 11.50 |
3 | ISMB 125 X 70 | 13.30 |
4 | ISMB 150 X 80 | 14.90 |
5 | ISMB 175 X 85 | 19.30 |
6 | ISMB 200 X 100 | 25.40 |
7 | ISMB 225 X 110 | 31.21 |
8 | ISMB 250 X 125 | 37.30 |
9 | ISMB 300 X 140 | 46.00 |
10 | ISMB 350 X 140 | 52.40 |
11 | ISMB 400 X 140 | 61.60 |
12 | ISMB 450 X 150 | 72.40 |
13 | ISMB 500 X 180 | 86.90 |
14 | ISMB 550 X 190 | 104.00 |
15 | ISMB 600 X 210 | 123.00 |
